Versatile. Precise. Intelligent.
Empowering Automation Across 3C Assembly, Research, Home Services, and Smart Retail.
Key Features:
• Integrated Servo Motors for Seamless Motion
• High Precision & Efficiency
• Durable All-Metal Body
• Intuitive Drag-and-Teach Control
Engineered for the Future of Flexible Robotics
Parameter Configuration
Degrees of Freedom
Working Radius
Positioning Accuracy
Rated Load
Net Weight
Maximum Speed
Continuous Operating Time
Structural Material
Standby Power Consumption
Rated Power
Peak Power
Operating Temperature Range
Operating Humidity
Mounting Orientation
Protection Rating
6 DOF
475.6 mm
0.2 mm
1 kg
5.2 kg
0.8 m/s
≥ 5000 h
Aluminum Alloy
10 W
150 W
350 W
0–50°C
90% RH (non-condensing)
Arbitrary
IP54

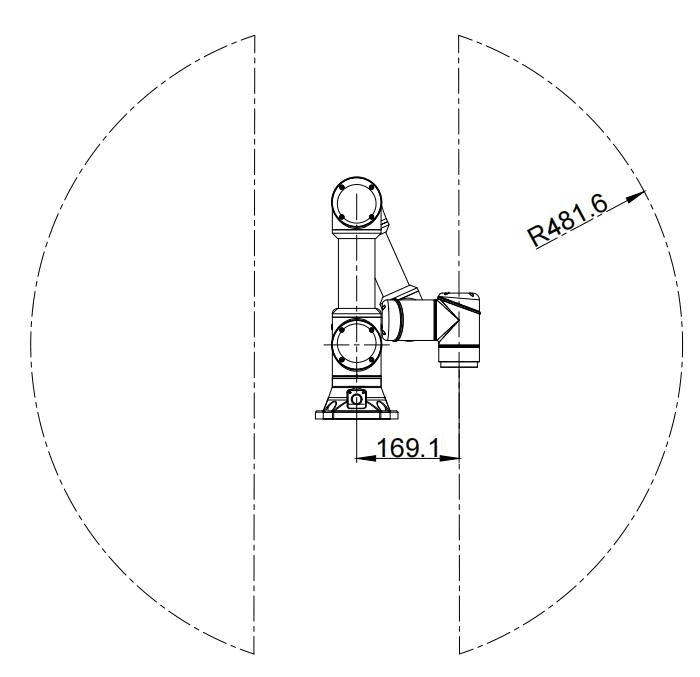

Scope of Work
View along the Z-axis

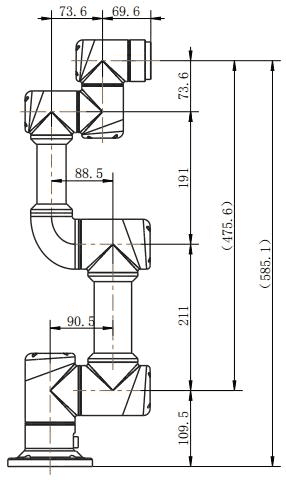

View along the X or Y axis

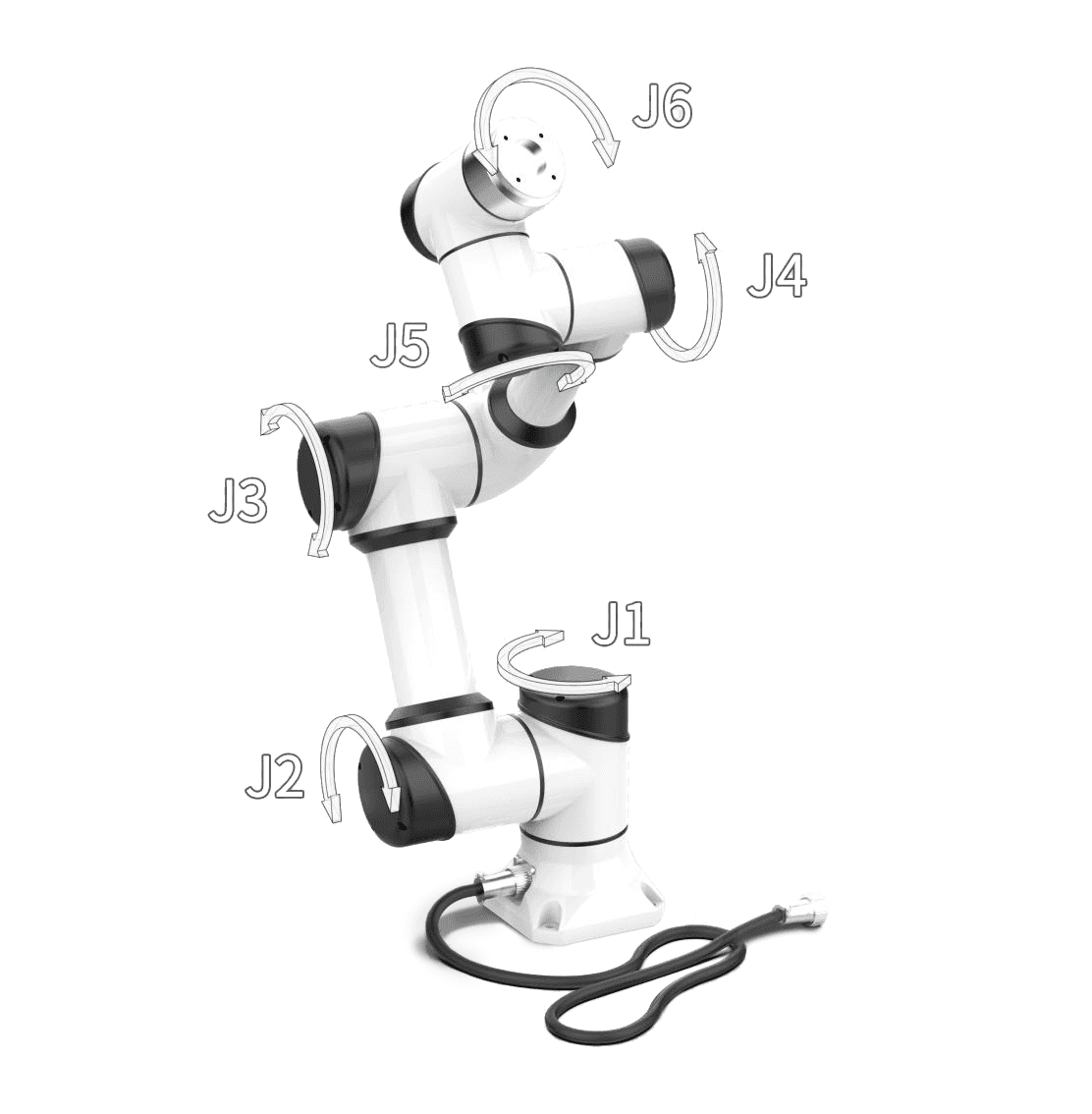

Joint Kinematic Parameters
Joint
J1
J2
J3
J4
J5
J6
Range of Motion
±175°
±175°
±175°
±175°
±175°
±175°
Max Speed
180°/s
180°/s
180°/s
180°/s
180°/s
180°/s

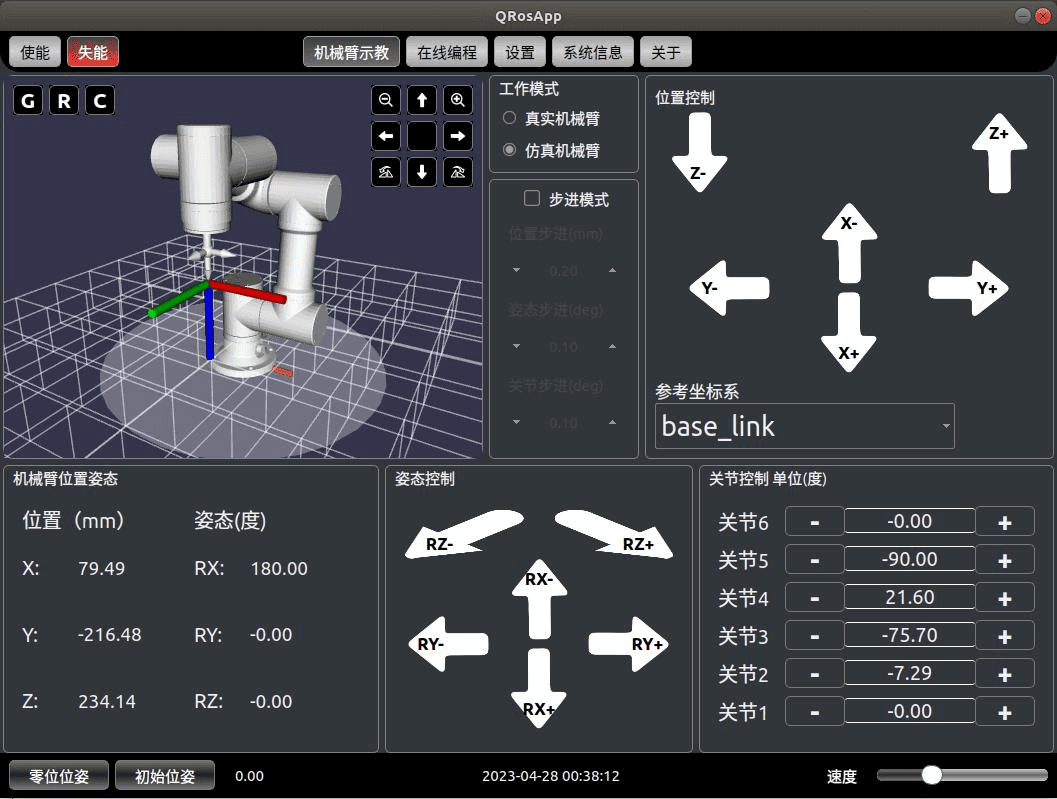

Teaching Software
Software Name
Operating System
Communication Interface
Robotic Arm Teaching System
Ubuntu 18.04 (supports Windows installation via virtual machine)
Ethernet
Controller
Dimensions (L × W × H)
Communication Protocol
Interface Openness
Power Supply
I/O Ports
Protection Rating
120 mm × 150 mm × 40 mm
CAN bus & Ethernet
SDK supported (C/C++)
24V / 15A
Digital Inputs × 8
Digital Outputs × 8
User-defined I/O × 2
Emergency Stop Button × 1
IP43

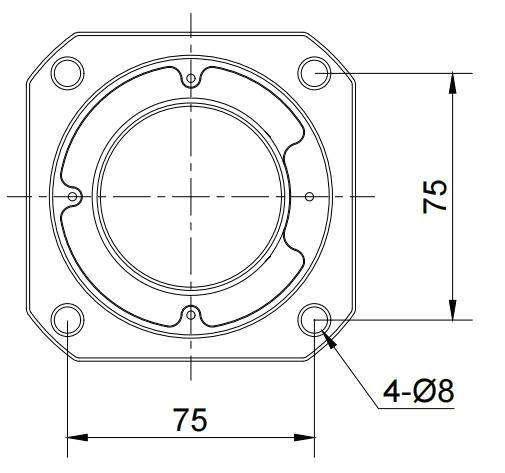

Interface Size
Base Interface
End Flange
