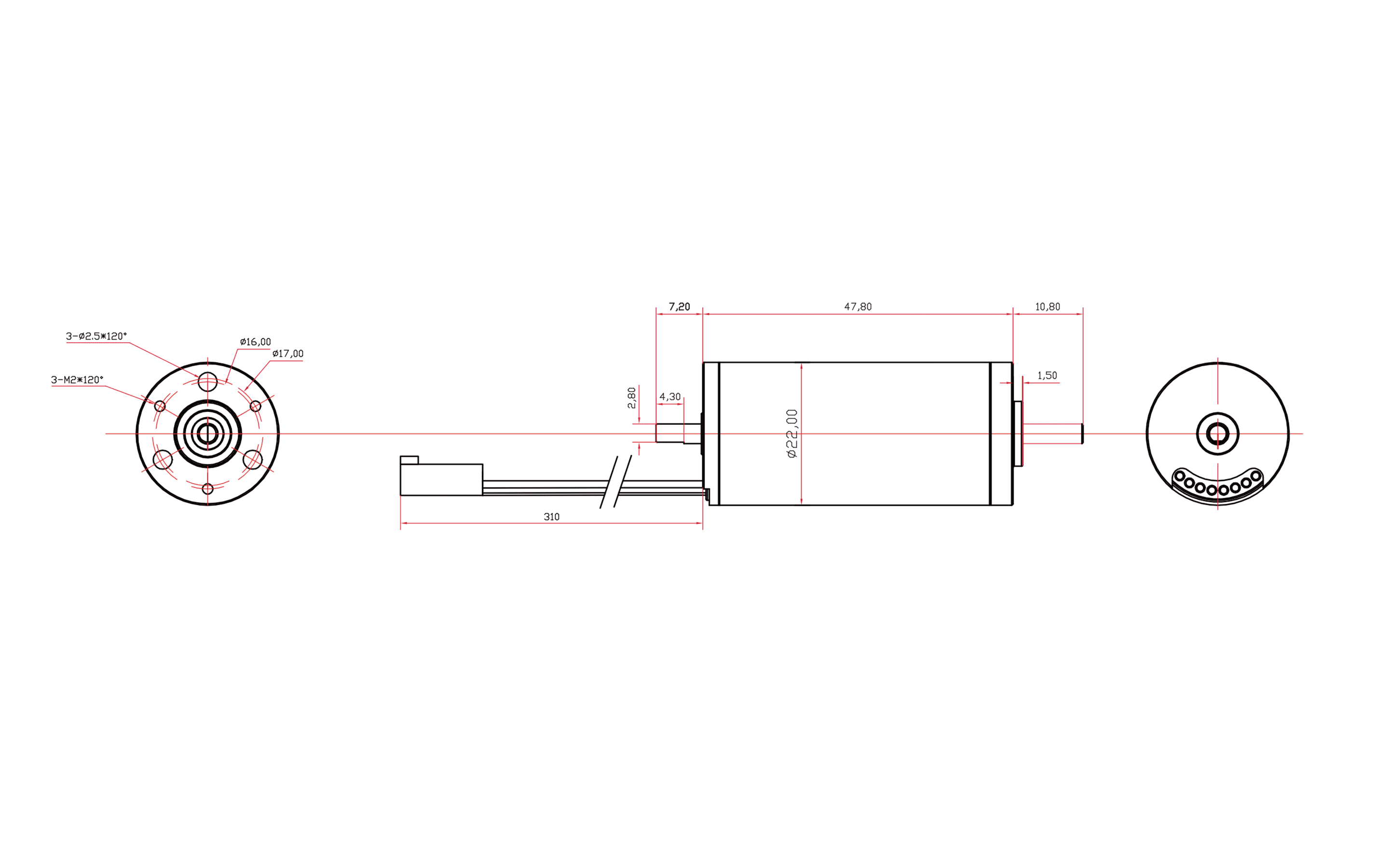

DC2248 Introduction [Unit: mm]
Diameter:
Φ22 mm
Length:
65.8 mm
Weight:
99.5 g
Value at Rated Voltage
Nominal Voltage:
24 V/DC
Nominal Speed:
53500 rpm
Nominal Current:
280 mA
Max-torque:
21.0 mNm
Max-continuous Point Power:
80 W
Moment of inertia:
2.50 gcm²
Max-efficiency:
88.0%
Max-efficiency Speed:
51210 rpm
Max-efficiency Current:
4024.9 mA
Max-efficiency Torque:
161.80 mNm
Max-power efficiency:
48.9%
Max-power Speed:
26790 rpm
Max-power Current:
30135.0 mA
Max-power Torque:
1286.80 mNm
Stall Current:
60000.0 mA
Stall Torque:
2573.5 mNm
Motor Constant
Phase Resistance:
0.41 Ω
Phase Inductance:
32 uH
Torque Constant:
4.25 mHm/A
Mechanical Time Constant:
5.7 ms
Thermal Time Constant:
0.065 s
Motor Terminal Definition
+ Vcc
- GND

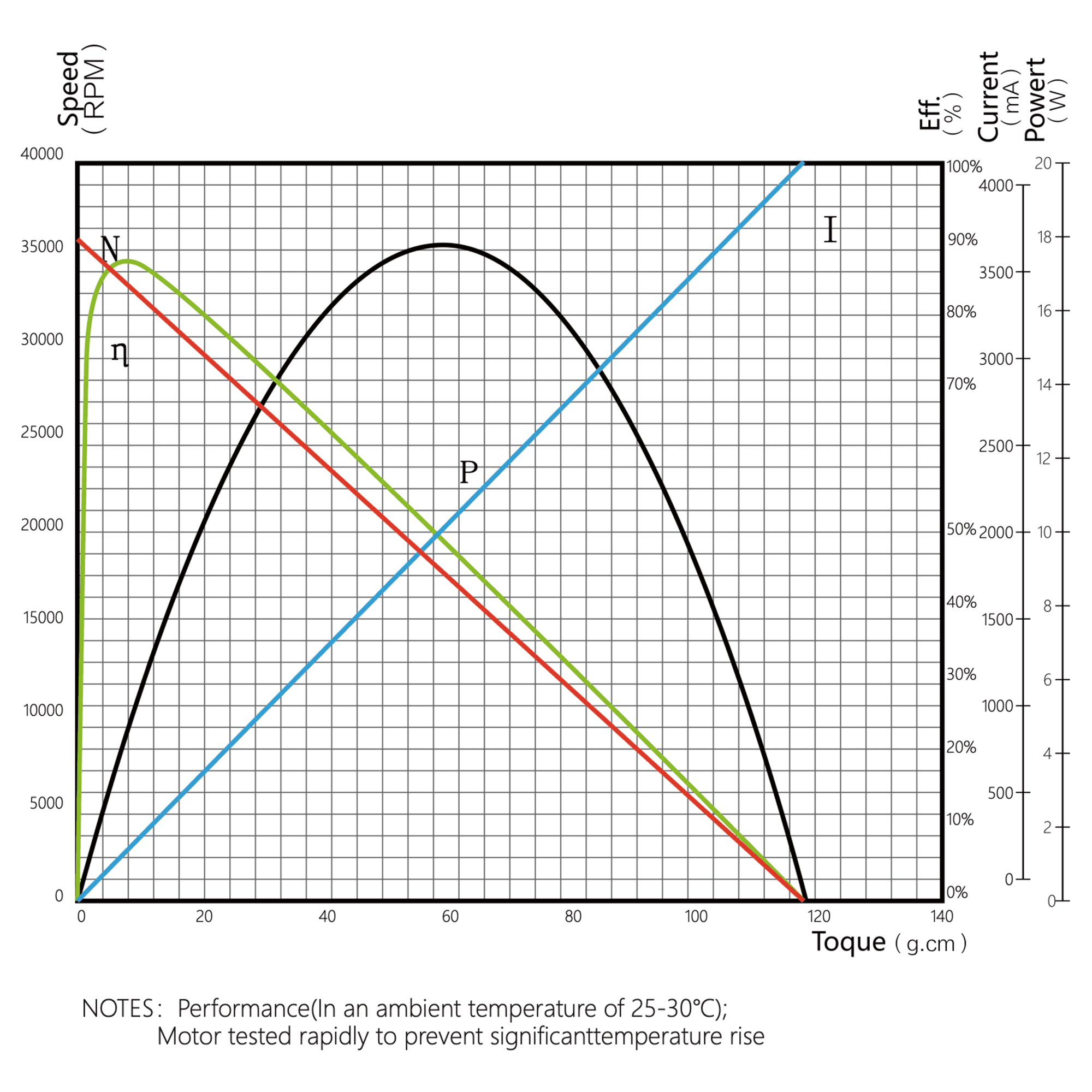

Motor Characteristics Curve
