MC0623 Introduction [Unit: mm]
Diameter:
Φ6 mm
Length:
28.3 mm
Weight:
4.0 g
Value at Rated Voltage
Nominal Voltage:
12 V/DC
Nominal Speed:
63200 rpm
Nominal Current:
35 mA
Max-torque:
0.43 mNm
Max-continuous Point Power:
2.2 W
Moment of inertia:
0.007 gcm²
Max-efficiency:
64.9%
Max-efficiency Speed:
53240 rpm
Max-efficiency Current:
187.1 mA
Max-efficiency Torque:
2.67 mNm
Max-power efficiency:
44.2%
Max-power Speed:
31600 rpm
Max-power Current:
517.5 mA
Max-power Torque:
8.47 mNm
Stall Current:
1000.0 mA
Stall Torque:
16.93 mNm
Motor Constant
Phase Resistance:
12.0 Ω
Phase Inductance:
115 uH
Torque Constant:
17.5 mHm/A
Mechanical Time Constant:
2.5 ms
Thermal Time Constant:
75 s
Motor Terminal Definition
+ Vcc
- GND

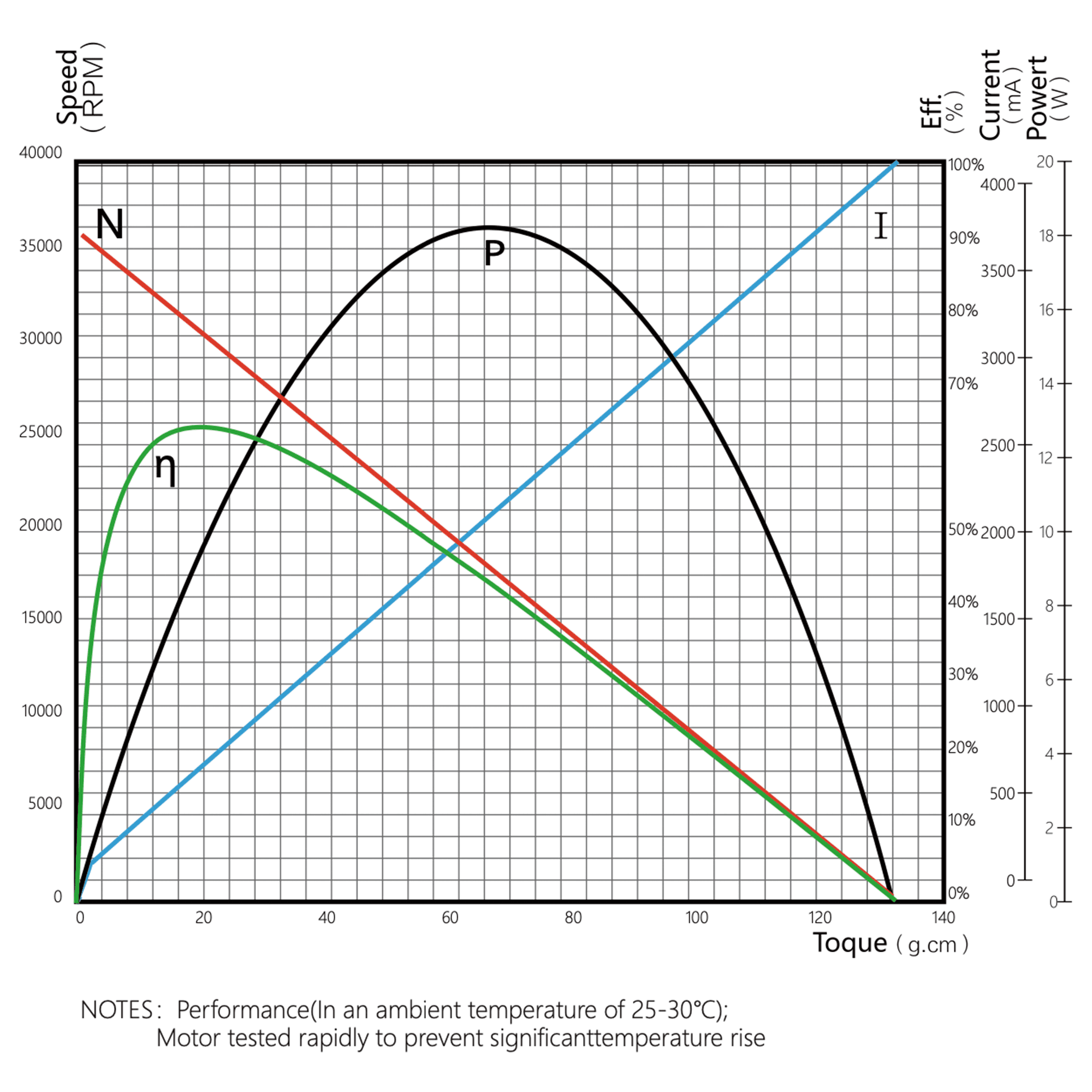

Motor Characteristics Curve
