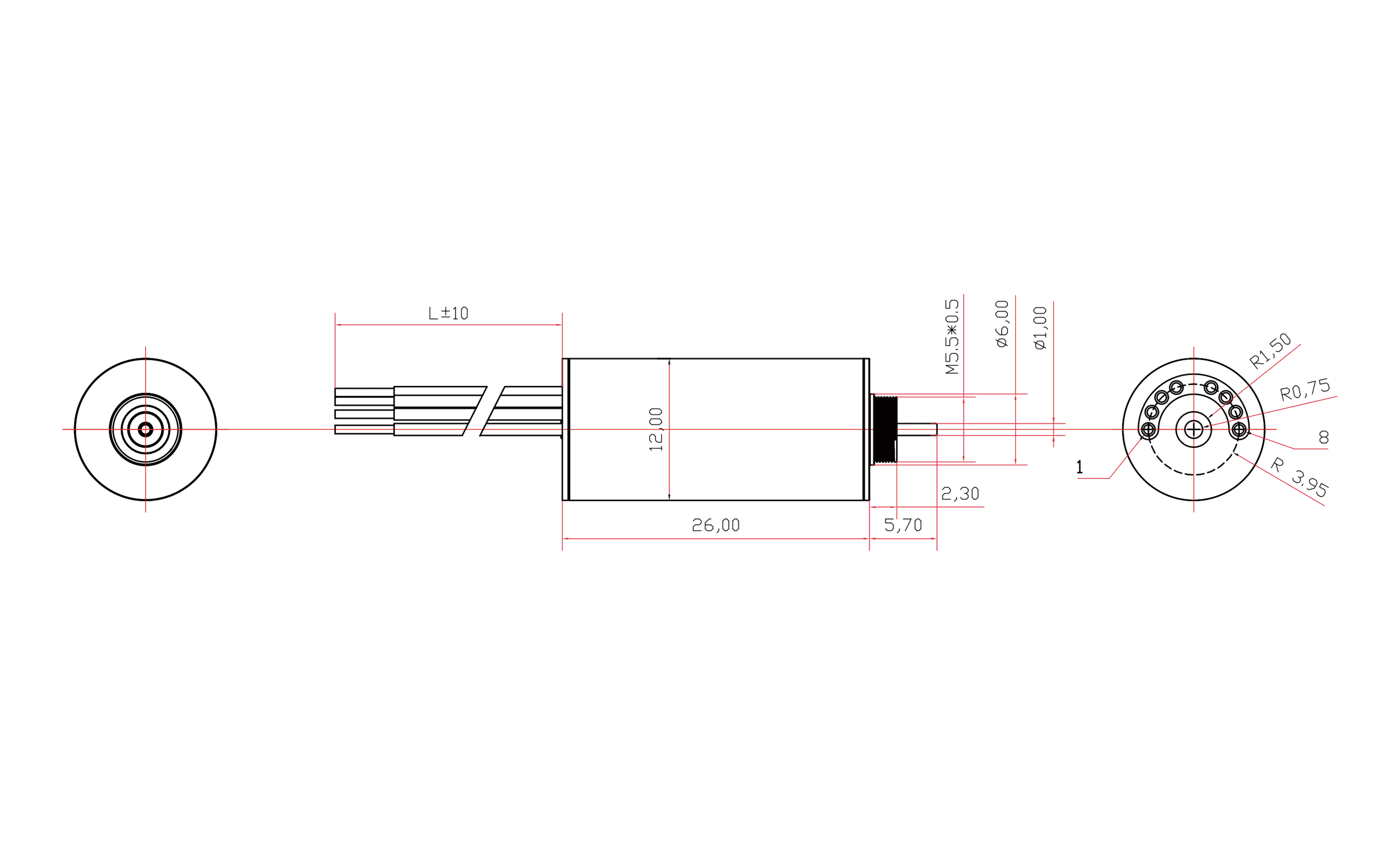

CY1226 Introduction [Unit: mm]
Diameter:
Φ12 mm
Length:
30.8 mm
Weight:
16.5 g
Value at Rated Voltage
Nominal Voltage:
12 V/DC
Nominal Speed:
29000 rpm
Nominal Current:
80 mA
Max-torque:
1.30 mNm
Max-continuous Point Power:
3.2 W
Moment of inertia:
0.15 gcm²
Max-efficiency:
64.5%
Max-efficiency Speed:
24200 rpm
Max-efficiency Current:
421.6 mA
Max-efficiency Torque:
13.14 mNm
Max-power efficiency:
44.1%
Max-power Speed:
14400 rpm
Max-power Current:
1151.0 mA
Max-power Torque:
41.19 mNm
Stall Current:
2222.0 mA
Stall Torque:
82.39 mNm
Motor Constant
Phase Resistance:
5.4 Ω
Phase Inductance:
92 uH
Torque Constant:
38.46 mHm/A
Mechanical Time Constant:
4.4 ms
Thermal Time Constant:
210 s
Motor Terminal Definition
+ Vcc
- GND

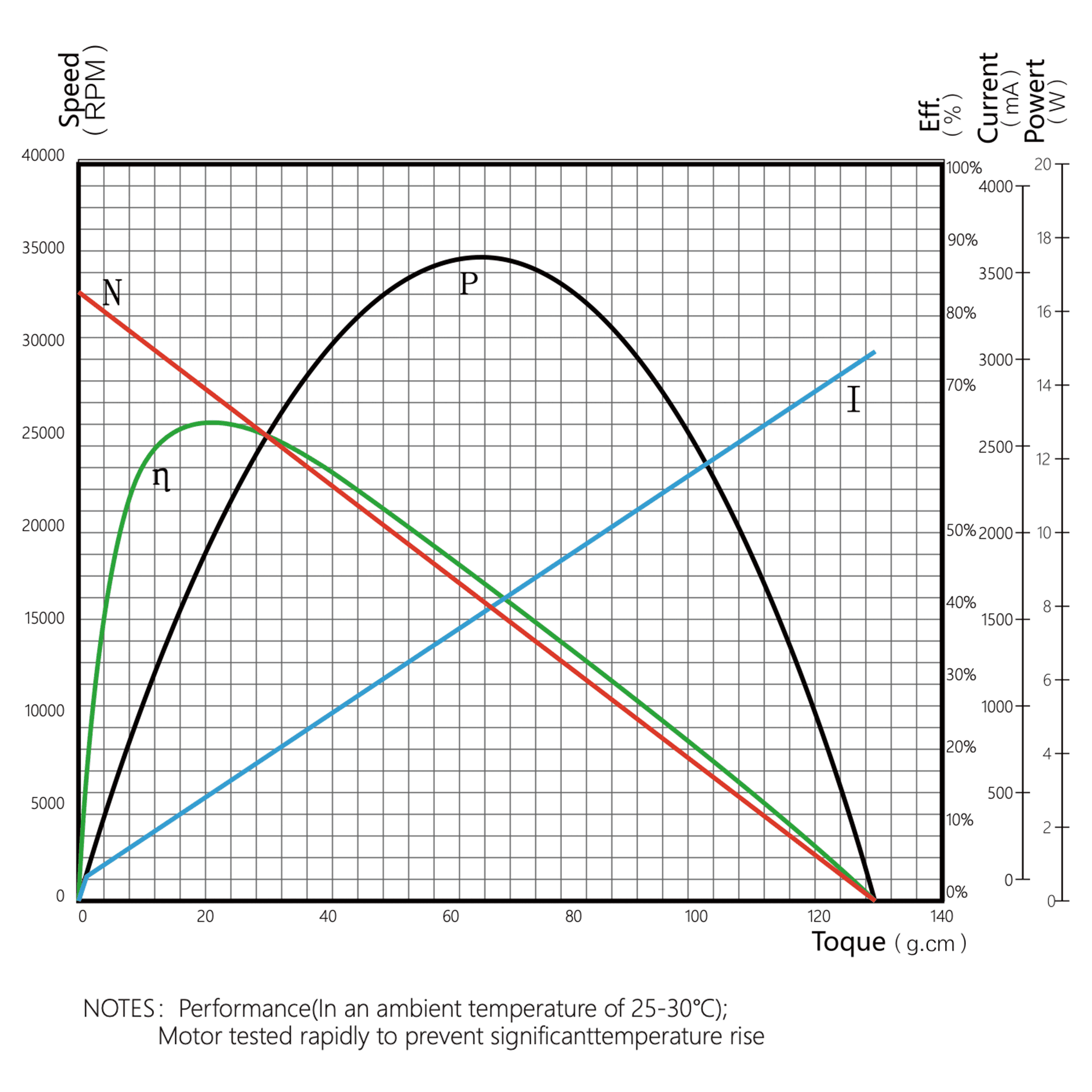

Motor Characteristics Curve
