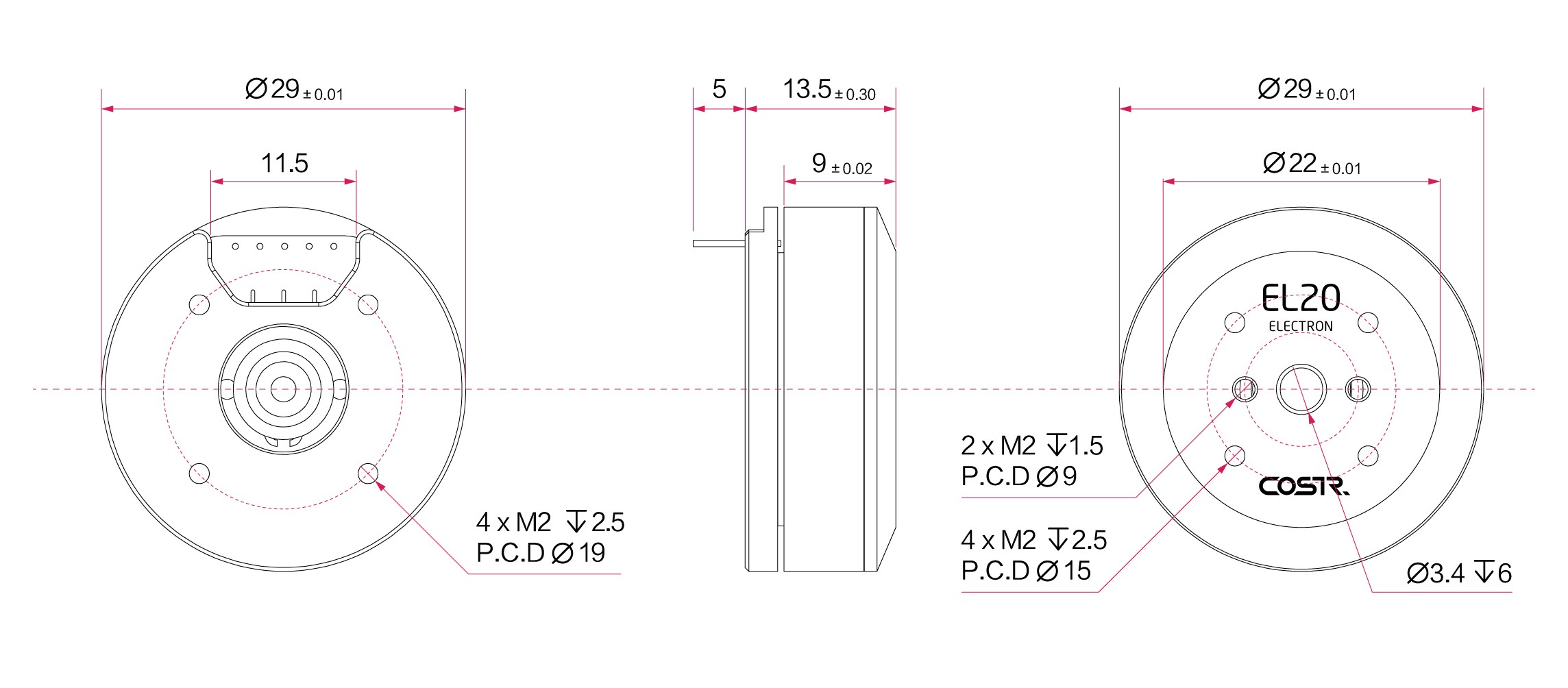

EL20 Engineering Parameter Diagram [Unit: mm]
Motor Operating Parameters
Motor Type:
Brushless Servo Motor
Power:
12 W
Rated Voltage:
24 VDC
Rated Speed:
4000 rpm
No-Load Speed:
4867 rpm
Rated Torque:
0.028 N·m
Peak Torque:
0.084 N·m
Torque Constant:
0.0345 N·m/A
Phase Current Rating:
2 A
Rated Bus Current:
0.50 A
Static Bus Current:
0.50 A
Basic Parameters
Voltage Range:
24-45 VDC
Resolution:
16384 (14-bit) Step/turn
Diameter:
Φ29 mm
Length:
13.5 mm
Weight:
26g
Rotation Angle:
> 360.0°
Noise Level:
≤ 70 dB(A)
Temperature Range:
-20°C to +80°C
Rotor Moment of Inertia:
22.5254 g·cm²
Rated Static Load:
40 N
