Planetary proServo
Micro Flexible Servo Joints
With Planetary Reducer
For Bionic Robotics, Bionic Animals, Education, and Dexterous Manipulators.

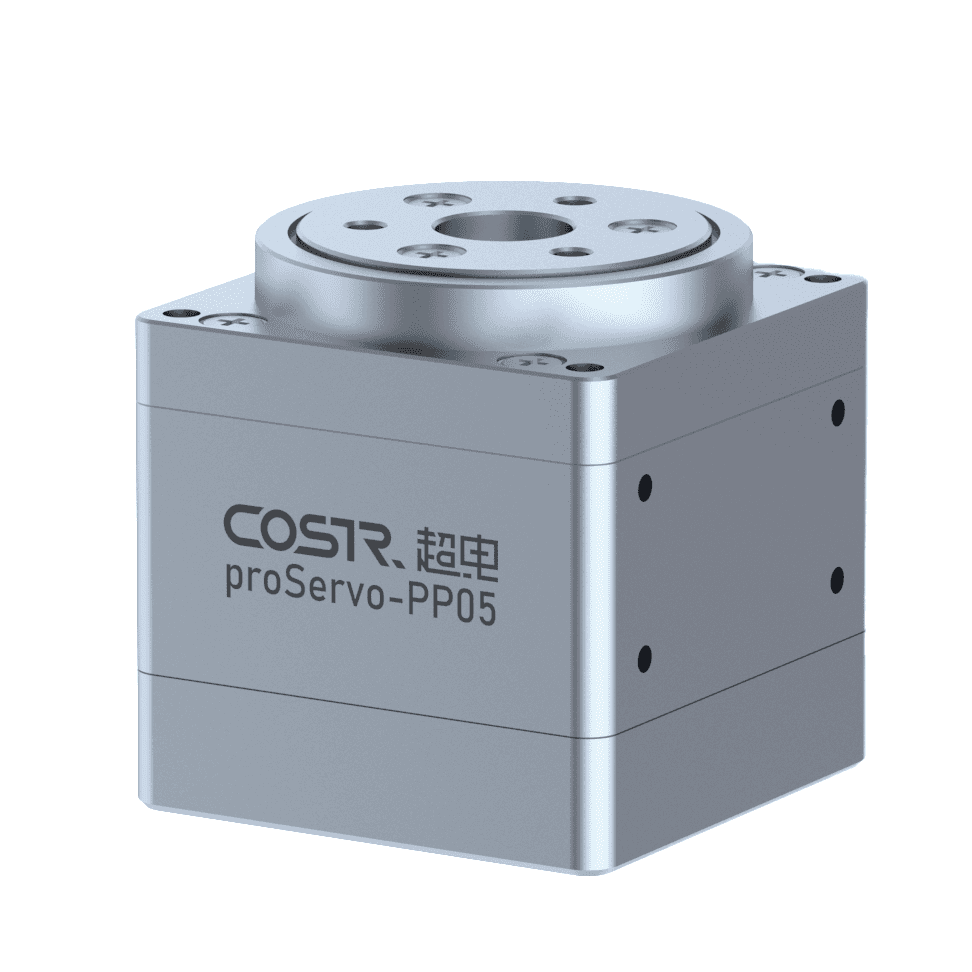

COSTR. ProServo PP05
Micro Servo Joint with Planetary Reducer
Ø 32mm; Length 33.4mm; 82g
Rated Voltage: 24V; Rated Power: 35W
Speed: 50rpm (rated), 200rpm (no-load)
Torque: 0.2 N·m (rated), 0.48 N·m (peak)
COSTR. ProServo PP08
Micro Servo Joint with Planetary Reducer
Ø 40mm; Length 52mm; 190g
Rated Voltage: 24V; Rated Power: 36W
Speed: 50rpm (rated), 50rpm (no-load)
Torque: 1.0 N·m (rated), 2.2 N·m (peak)

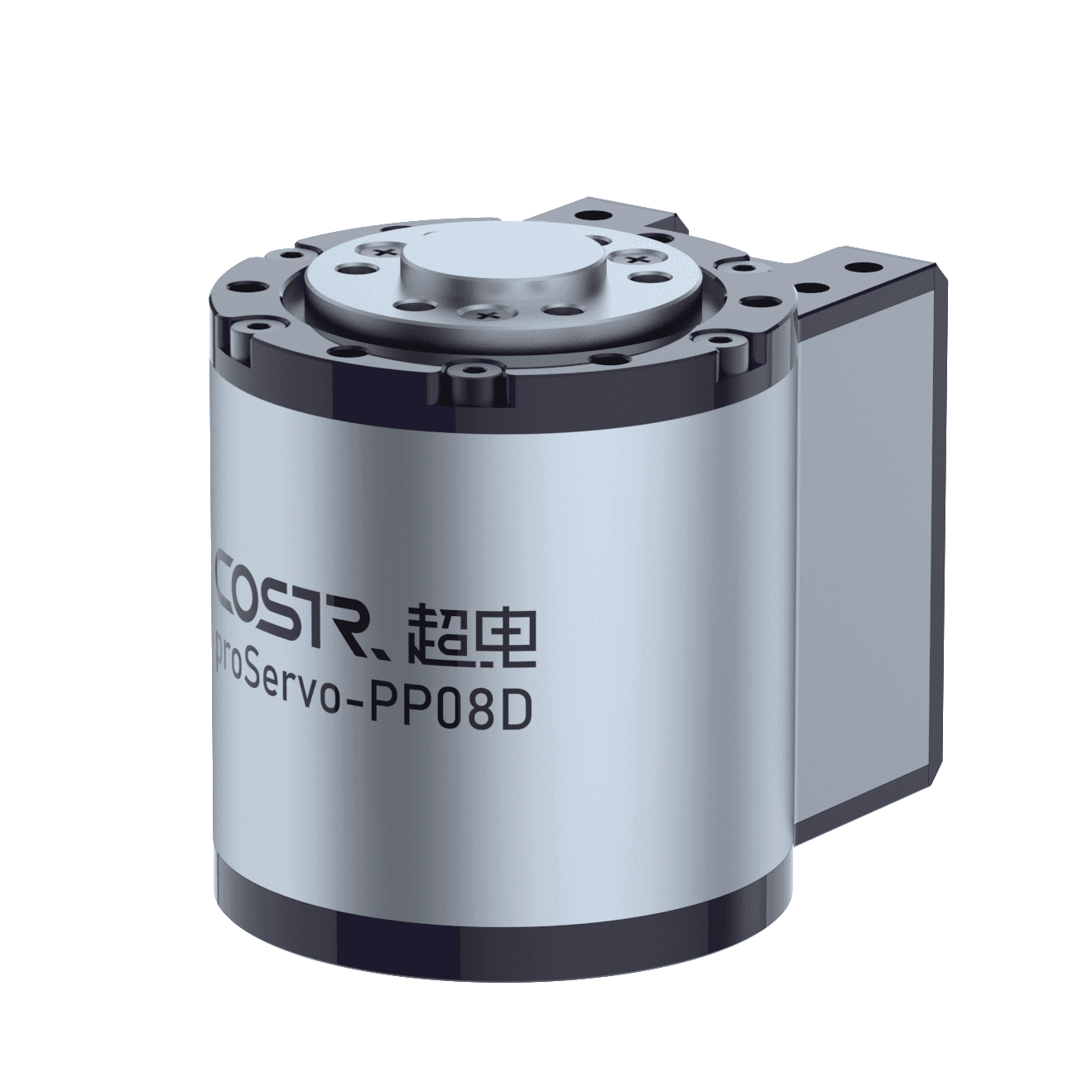

COSTR. ProServo PP08D
Micro Servo Joint with Planetary Reducer
Ø 40mm; Length 48mm; 199g
Rated Voltage: 24V; Rated Power: 36W
Speed: 50rpm (rated), 50rpm (no-load)
Torque: 1.0 N·m (rated), 2.2 N·m (peak)

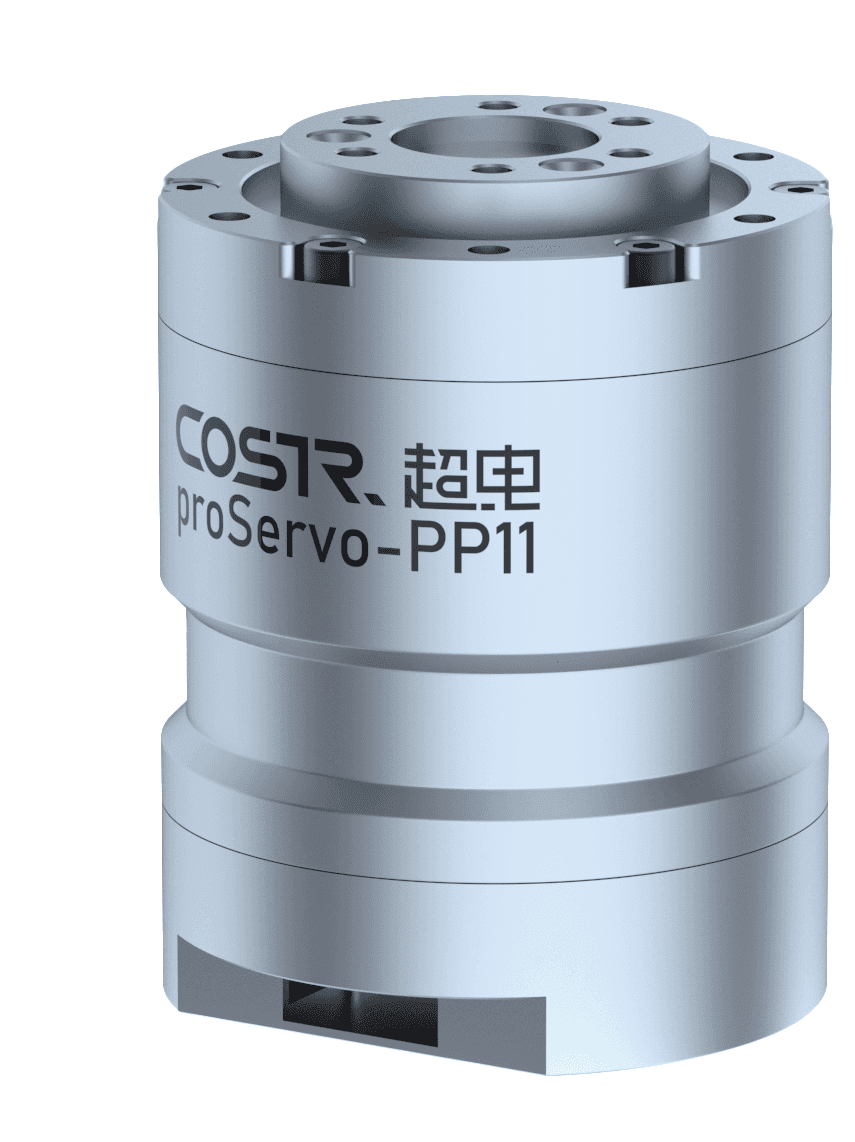

COSTR. ProServo PP11
Micro Servo Joint with Planetary Reducer
Ø 52mm; Length 64mm; 391g
Rated Voltage: 24V; Rated Power: 60W
Speed: 50rpm (rated), 80rpm (no-load)
Torque: 6.6 N·m (rated), 14 N·m (peak)
COSTR. ProServo PP11D
Micro Servo Joint with Planetary Reducer
Ø 52mm; Length 61mm; 436g
Rated Voltage: 24V; Rated Power: 60W
Speed: 50rpm (rated), 80rpm (no-load)
Torque: 6.6 N·m (rated), 14 N·m (peak)

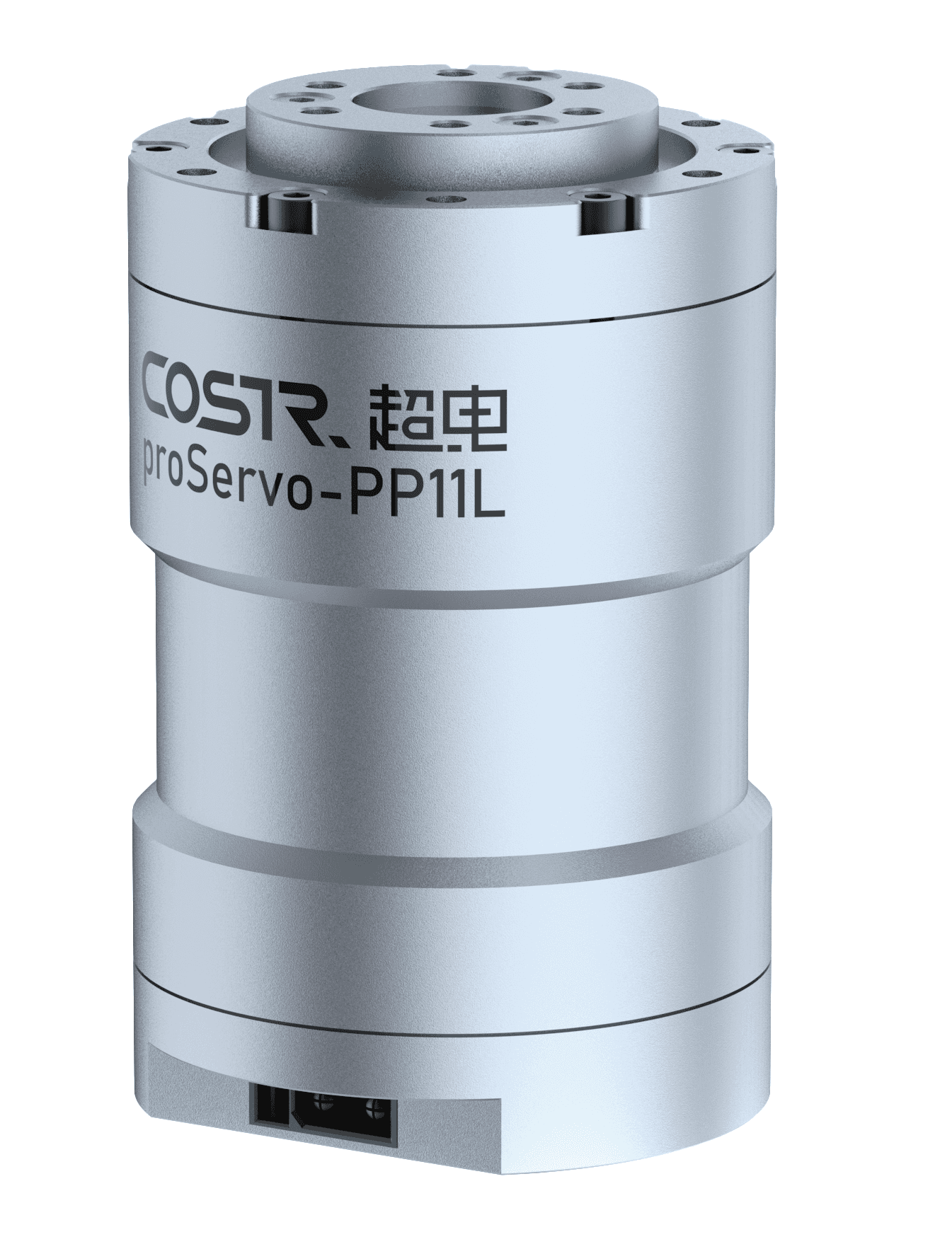

COSTR. ProServo PP11L
Micro Servo Joint with Planetary Reducer
Ø 52mm; Length 82mm; 517g
Rated Voltage: 24V; Rated Power: 72W
Speed: 50rpm (rated), 50rpm (no-load)
Torque: 12 N·m (rated), 18 N·m (peak)
