Planet Series
BLDC for Motion Control
Flat-Design Brushless Motors For Collaborative Robotics, 3C Assembly, and Bionic Applications.
Each Planet Series electric motor is available with both shaft and flange output options. Cover various joint modules with intelligent sensing, high torque output, and a compact flat profile. They are ideal for robotic applications and also well-suited for industrial automation, electric cars, AGV logistics, robotics fields, electrical tools, medical health, fitness equipment.

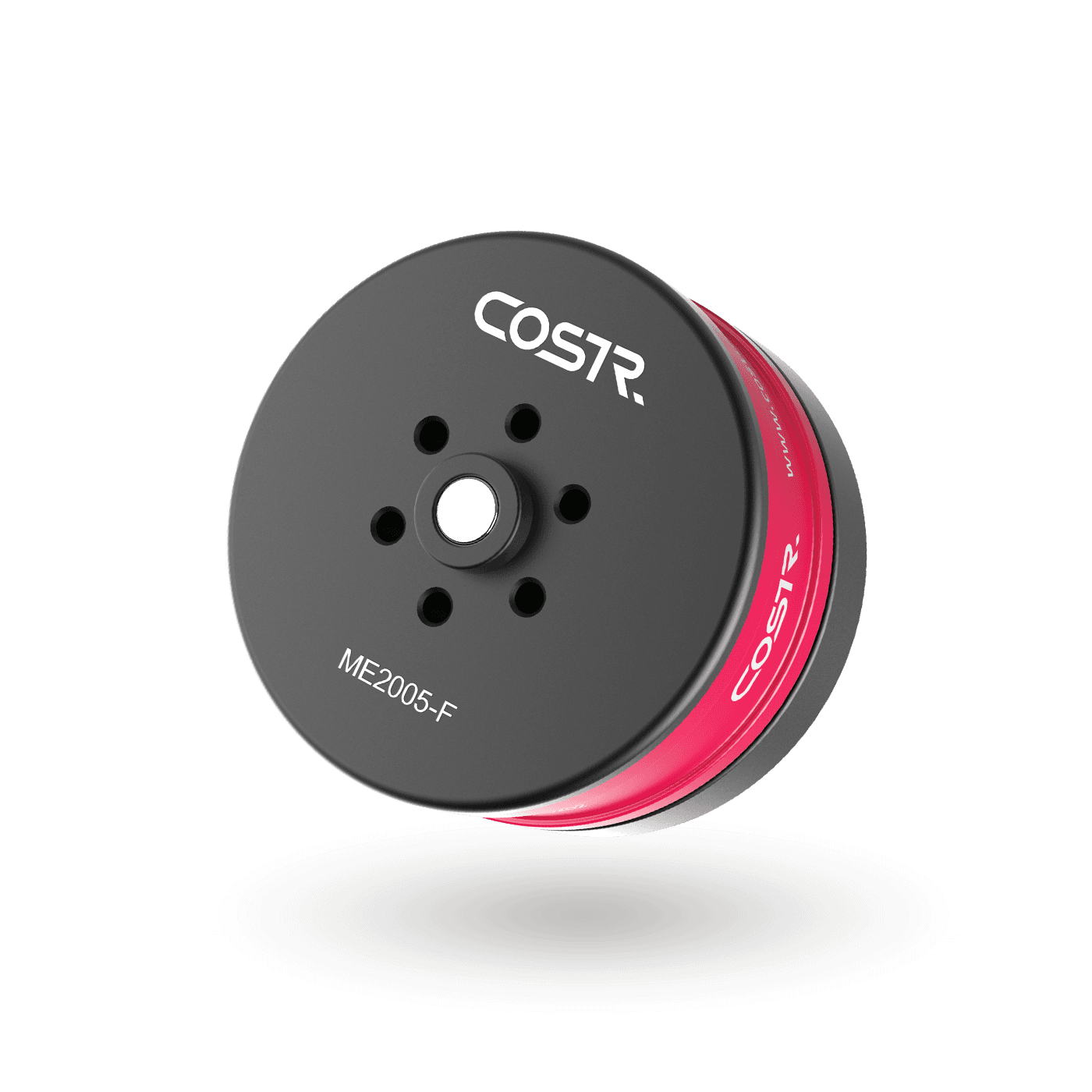

MERCURY ME2005
High-Performance Brushless Motor
High-Speed 24V Brushless Motor – 20,000 rpm, Compact Ø30mm
Stator Specification: 23 / 12 slots
Stator Thickness: 5
Torque: 0.18 N·m (rated), 0.76 N·m
Output: Flange / Shaft Output
View More Specs

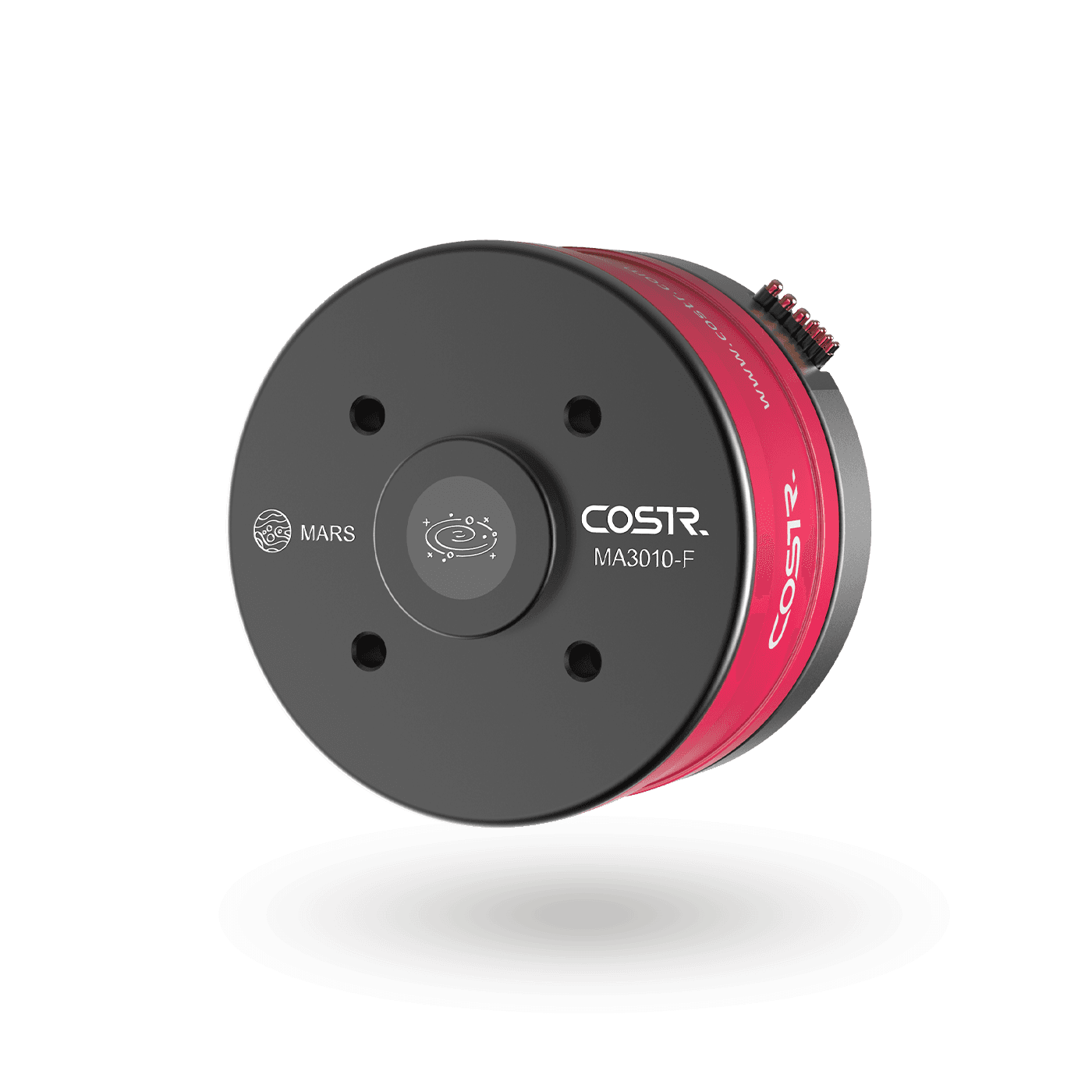

MARS MA3010
High-Performance Brushless Motor
High-Speed 24V Brushless Motor – 6,000 rpm, Compact Ø43.5mm
Stator Specification: 35 / 12 slots
Stator Thickness: 10
Torque: 0.32 N·m (rated), 1.53 N·m
Output: Flange / Shaft Output
View More Specs
VENUS VE5010
High-Performance Brushless Motor
High-Speed 48V Brushless Motor – 8,000 rpm, Compact Ø60mm
Stator Specification: 52.8 / 18 slots
Stator Thickness: 10
Torque: 0.85 N·m (rated), 15.53 N·m
Output: Flange / Shaft Output
View More Specs

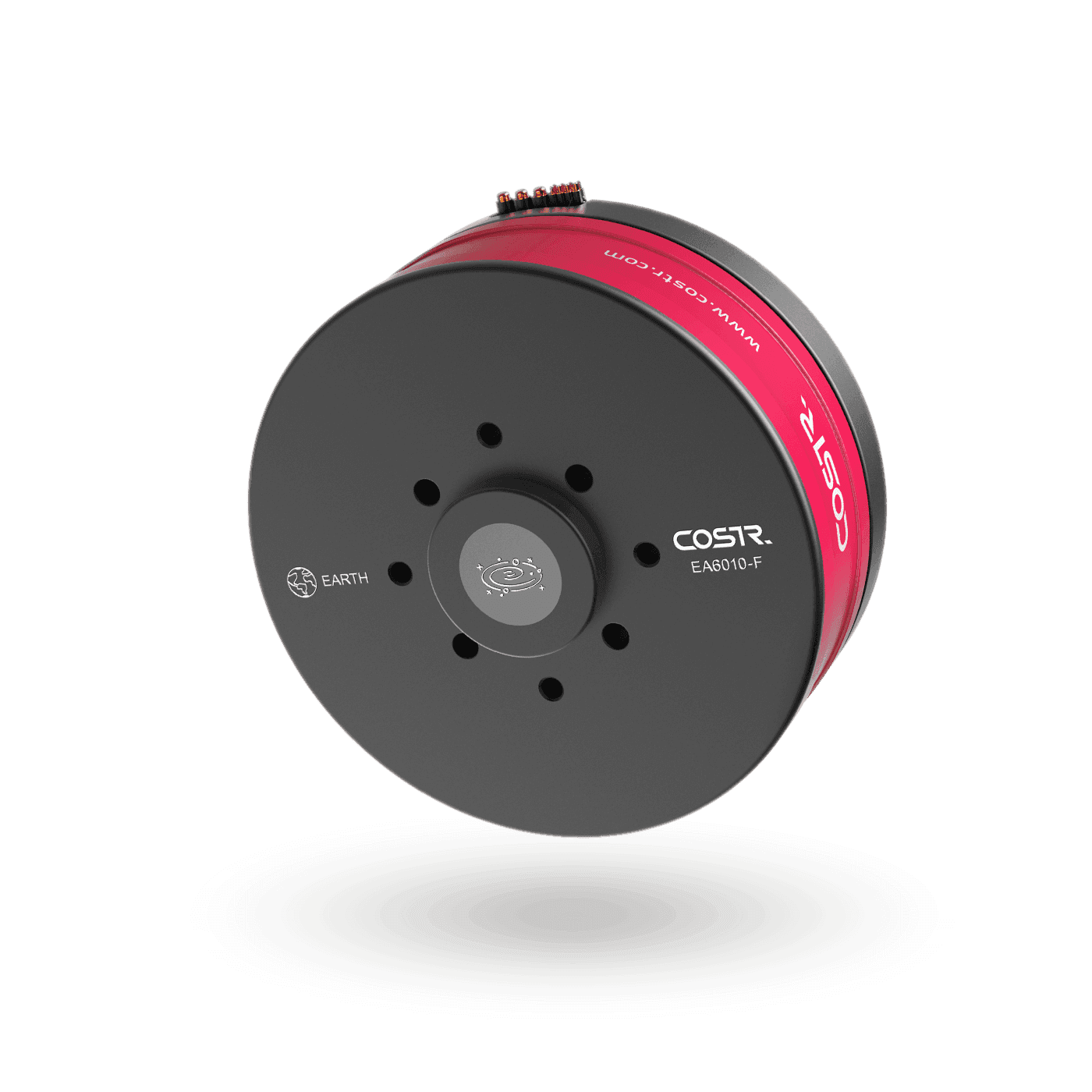

EARTH EA6010
High-Performance Brushless Motor
High-Speed 48V Brushless Motor – 4,000 rpm, Compact Ø68mm
Stator Specification: 60 / 18 slots
Stator Thickness: 10
Torque: 1.24 N·m (rated), 6.79 N·m
Output: Flange / Shaft Output
View More Specs
JUPITER JU18030
High-Performance Brushless Motor
High-Speed 75V Brushless Motor – 2,000 rpm, Compact Ø198mm
Stator Specification: 186 / 36 slots
Stator Thickness: 30
Torque: 33 N·m (rated), 864 N·m
Output: Flange / Shaft Output
View More Specs

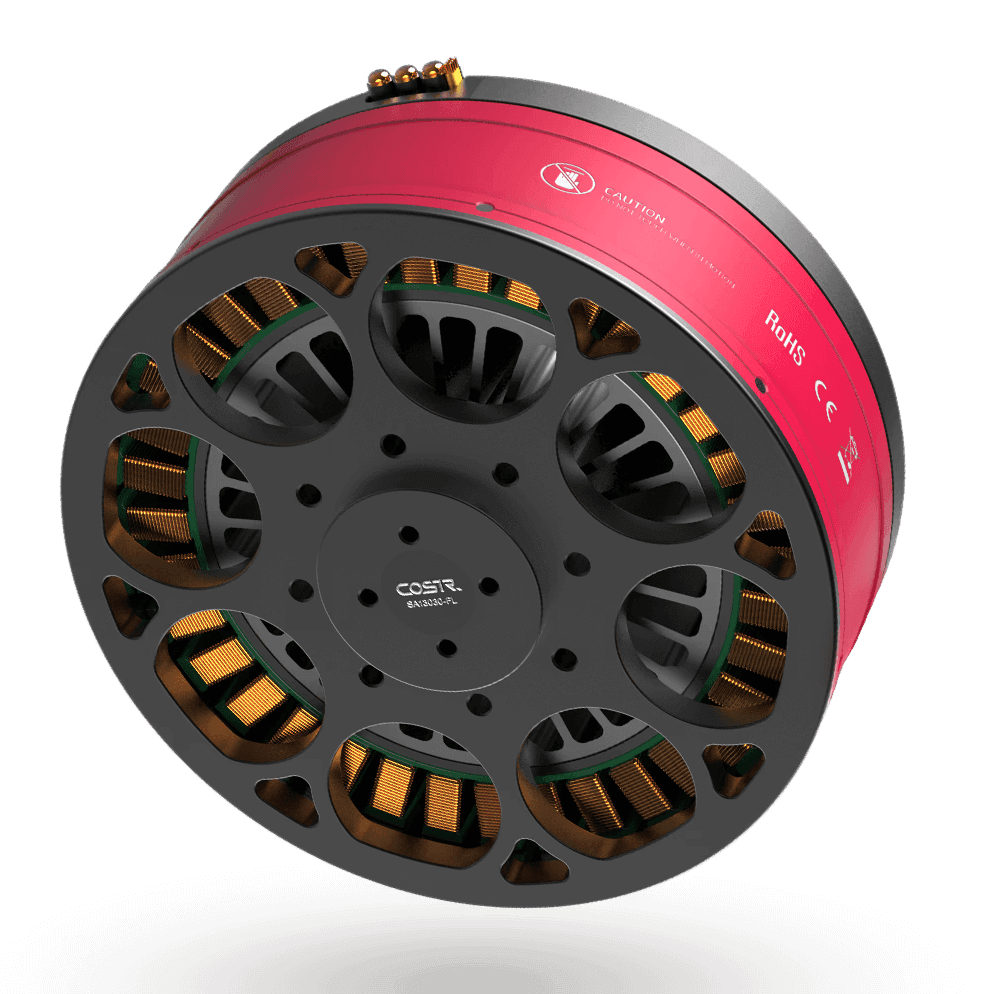

SATURN SA13030
High-Performance Brushless Motor
High-Speed 75V Brushless Motor – 4,300 rpm, Compact Ø148mm
Stator Specification: 137.6 / 36 slots
Stator Thickness: 30
Torque: 18 N·m (rated), 1035 N·m
Output: Flange / Shaft Output
View More Specs
Neptune NE8010
High-Performance Brushless Motor
High-Speed 48V Brushless Motor – 3,800 rpm, Compact Ø198mm
Stator Specification: 81 / 36 slots
Stator Thickness: 10
Torque: 2.42 N·m (rated), 19.96 N·m
Output: Flange / Shaft Output
View More Specs

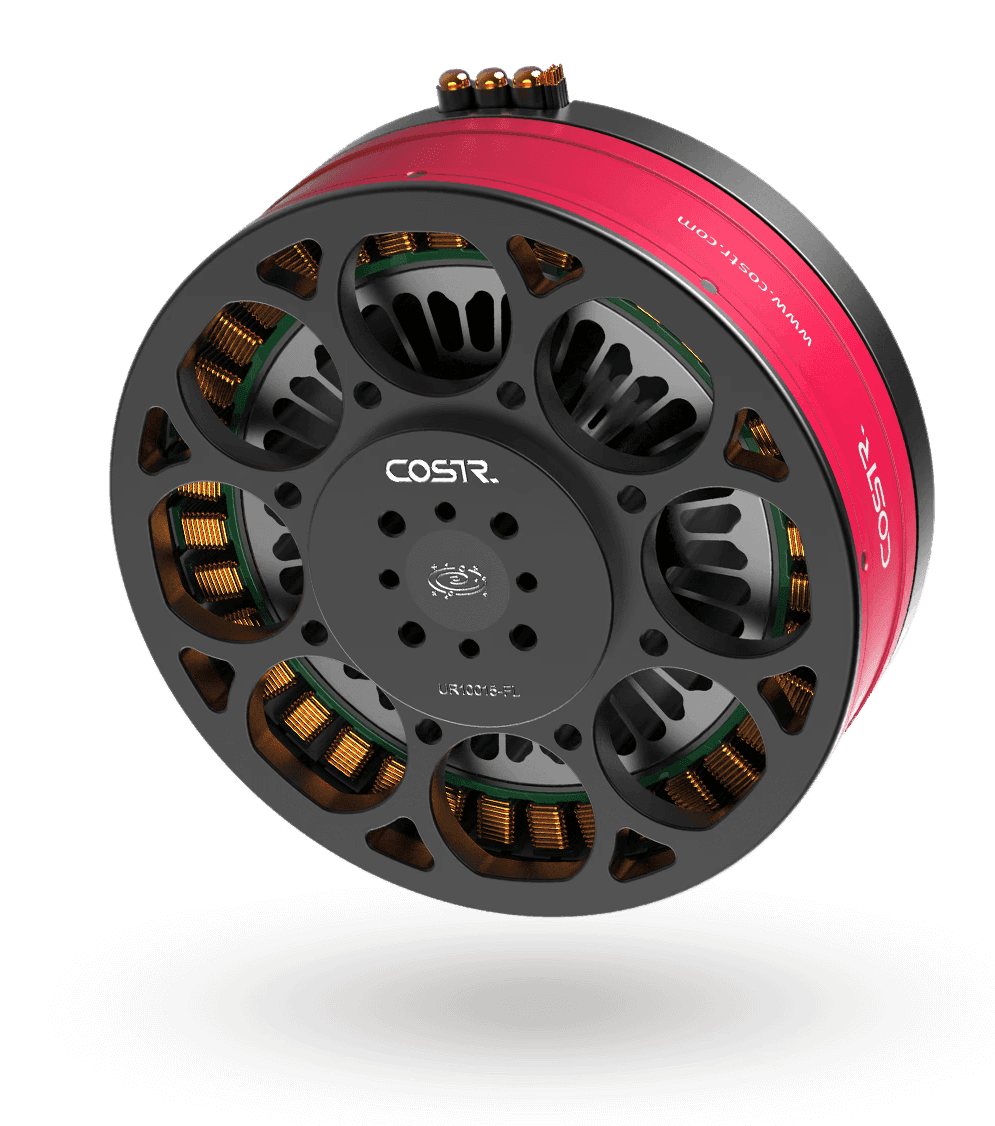

URANUS UR10015
High-Performance Brushless Motor
High-Speed 48V Brushless Motor – 3,000 rpm, Compact Ø108mm
Stator Specification: 100 / 36 slots
Stator Thickness: 15
Torque: 5.5 N·m (rated), 58.5 N·m
Output: Flange / Shaft Output
View More Specs

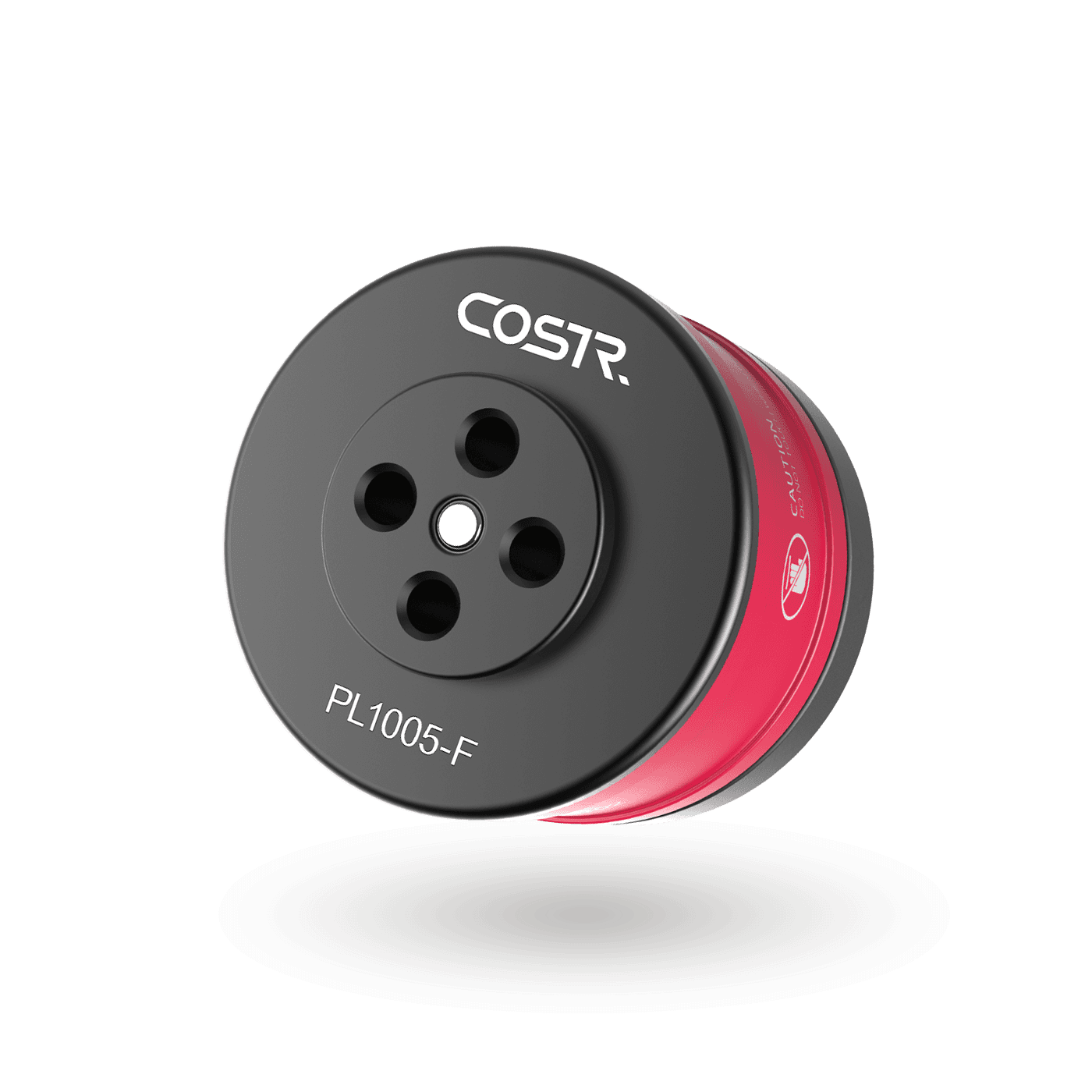

PLUTO PL1005
High-Performance Brushless Motor
High-Speed 12V Brushless Motor – 47,000 rpm, Compact Ø68mm
Stator Specification: 12.7 / 9 slots
Stator Thickness: 5
Torque: 0.01 N·m (rated), 0.083 N·m
Output: Flange / Shaft Output
View More Specs
